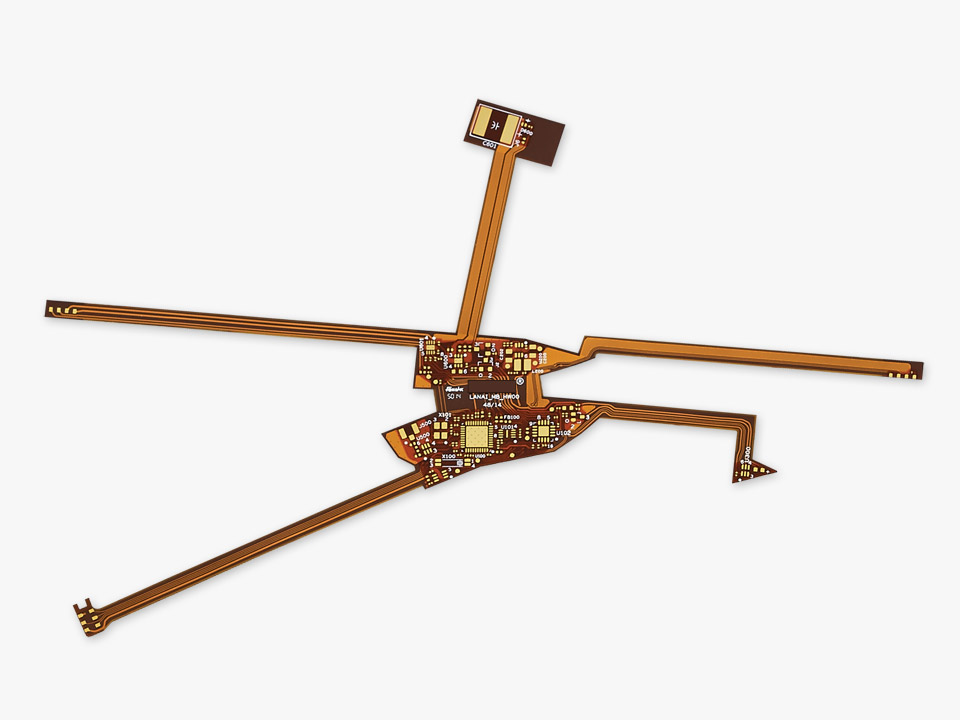

Multi layer Flexible PCB

Multilayer Flex Printing Circuits Board work well in applications involving denser assemblies. Designs typically consist of 2-8 conductive layers and the appropriate number of insulating layers: one between each conductive layer and two outside layers on top and bottom. Overall thickness ranges from 9.1 (.0091”) to 23.5 (.0235”) mils in most designs.

With a more rigid construction compared to other types of flex circuits, many of our customers select multilayer circuits for their thickness characteristics. When required, these circuits can be designed with more flexibility for use in complex circuit assemblies. Controlled impedance and EMI-shielded designs are also achievable with this type of circuit.
